Gears & Racks
Spur, helical, bevel, spiral bevel and worm gears, plus precision ground racks, CNC engraving-machine racks and sliding-gate racks — hobbed, shaped or ground to drawing.
Spur Gears (30)Helical Gears (24)Bevel Gears (15)Spiral Bevel Gears (12)Worm Gears (20)Precision Gear Racks (38)Engraving Machine Gear Racks (16)Sliding Gate Gear Racks (10)

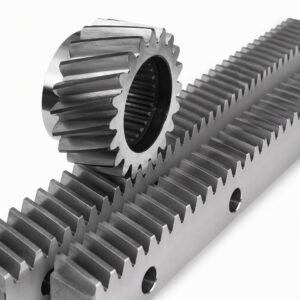

Model Greenhouse Rack and Pinion Set, Made to Drawing
Greenhouse Rack and Pinion Set, Made to Drawing
- Bore and keywayMachined to your drive shaft
- Fixing holesDrilled to your mounting pattern
- Module / tooth pitchSpecified per order — please advise or send sample

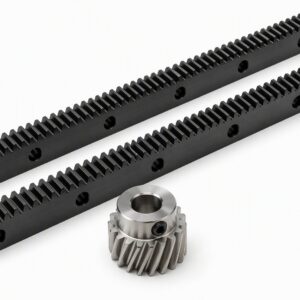

Model Helical Gear Rack for CNC Engraving Machines
Helical Gear Rack for CNC Engraving Machines
- Length1000, 1500, 2000 mm
- Item Specification ModuleM1.25, M1.5, M2, M2.5, M3
- Tooth formHelical, right-hand 19°31′42″

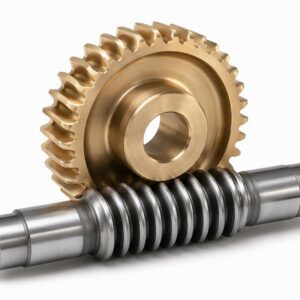

Model WORM-M3-R40
M3 1:40 Worm Gear Set
- Module3
- Ratio1:40
- Worm Starts1

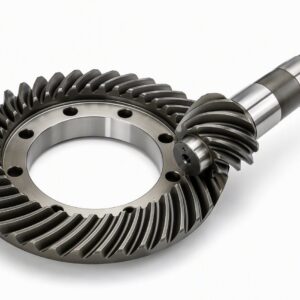

Model SBV-M3-Z20-60
M3 20/60 Spiral Bevel Gear Set
- Module3
- Ratio1:3
- Pinion Teeth20

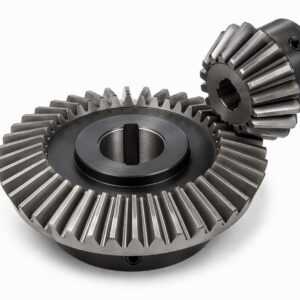

Model BEV-M3-Z20-60
M3 20/60 Straight Bevel Gear Set
- Module3
- Ratio1:3
- Pinion Teeth20

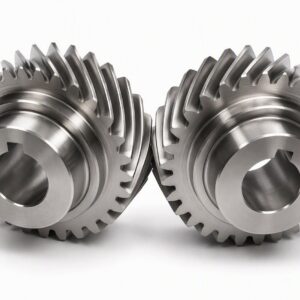

Model HEL-M4-Z40-RH
M4 Z40 RH Helical Gear
- Module4
- Teeth40
- Helix Angle19°31′42″ reference / custom

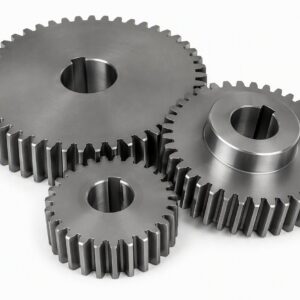

Model M4-Z40
M4 Z40 Spur Gear
- Module4
- Teeth40
- Pressure Angle20°

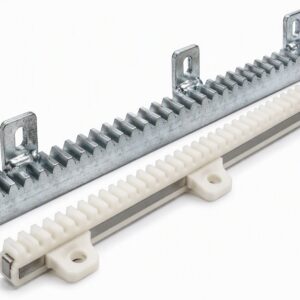

Model Steel Sliding Gate Gear Rack, M4 and M6
Steel Sliding Gate Gear Rack, M4 and M6
View detailsModel Curved Gear Rack for Greenhouse Vent Systems
Curved Gear Rack for Greenhouse Vent Systems
- Base materialSteel
- Surface protectionGalvanized
- Tooth profileInvolute spur
Model WORM-M3-R30
M3 1:30 Worm Gear Set
- Module3
- Ratio1:30
- Worm Starts1
Model SBV-M3-Z20-40
M3 20/40 Spiral Bevel Gear Set
- Module3
- Ratio1:2
- Pinion Teeth20
Model BEV-M3-Z20-40
M3 20/40 Straight Bevel Gear Set
- Module3
- Ratio1:2
- Pinion Teeth20
Model ER-M3-2000
M3 Engraving Machine Helical Gear Rack 2000 mm
- ModuleM3
- Length2000 mm
- Helix Angle19°31′42″ reference / custom
Model HEL-M4-Z30-LH
M4 Z30 LH Helical Gear
- Module4
- Teeth30
- Helix Angle19°31′42″ reference / custom
Model M4-Z30
M4 Z30 Spur Gear
- Module4
- Teeth30
- Pressure Angle20°
Model ST-M4-9X30X1005
Steel M4 Gear Rack 9x30x1005 mm
- ModuleM4
- Section / Mounting9 x 30 mm section
- Length1005 mm
Model WORM-M3-R20
M3 1:20 Worm Gear Set
- Module3
- Ratio1:20
- Worm Starts1
Model SBV-M3-Z20-20
M3 20/20 Spiral Bevel Gear Set
- Module3
- Ratio1:1
- Pinion Teeth20
Model BEV-M3-Z20-20
M3 20/20 Straight Bevel Gear Set
- Module3
- Ratio1:1
- Pinion Teeth20
Model ER-M3-1500
M3 Engraving Machine Helical Gear Rack 1500 mm
- ModuleM3
- Length1500 mm
- Helix Angle19°31′42″ reference / custom
Model HEL-M4-Z25-LH
M4 Z25 LH Helical Gear
- Module4
- Teeth25
- Helix Angle19°31′42″ reference / custom
Model M4-Z25
M4 Z25 Spur Gear
- Module4
- Teeth25
- Pressure Angle20°
Model KDI-SR-M6-DIN7-1000
M6 DIN7 Spur Precision Gear Rack 1000 mm
- ModuleM6
- Length1000 mm
- Tooth TypeSpur
Model ST-M4-8X30X1005
Steel M4 Gear Rack 8x30x1005 mm
- ModuleM4
- Section / Mounting8 x 30 mm section
- Length1005 mm
Have a drawing, sample or model number?
Send it to our engineering team — we confirm the specification and reply with a quotation.
